Get Access token

Before testing the Open API, we should first acquire the access token.

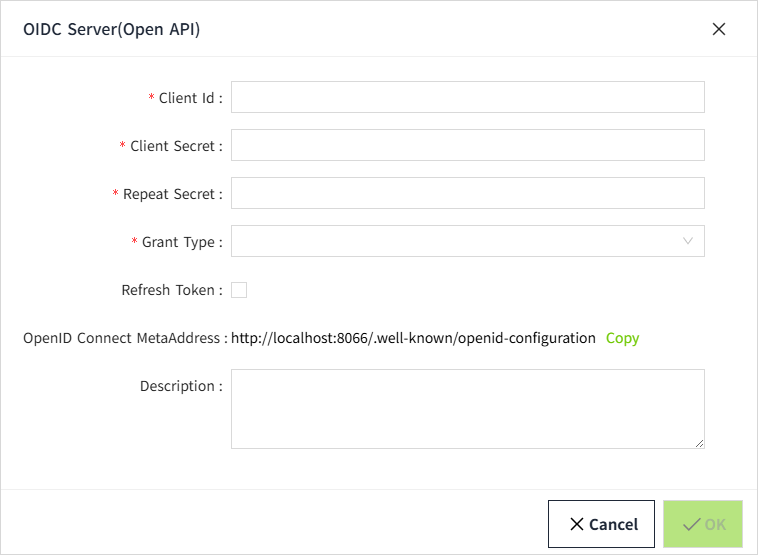

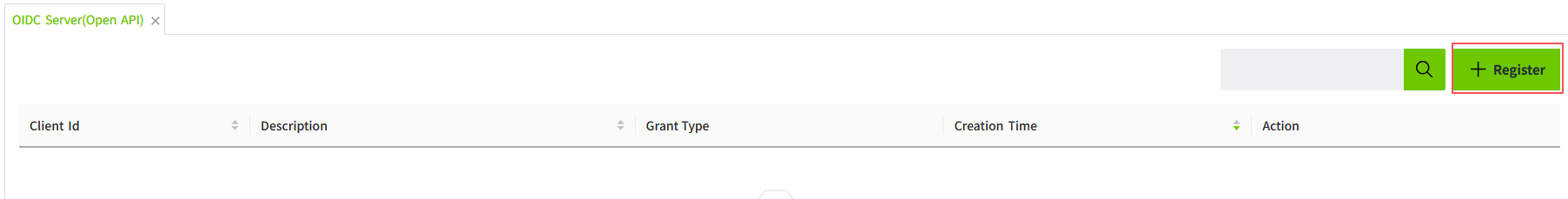

  1. Log in VC Hub, navigate to the Security->OIDC Server(Open API) page, and create a new pair of client ID and client secret. For details about the API credential management page, refer to chapter "Secutity -> OIDC Server(Open API) Registrations".

    alt text

    alt text

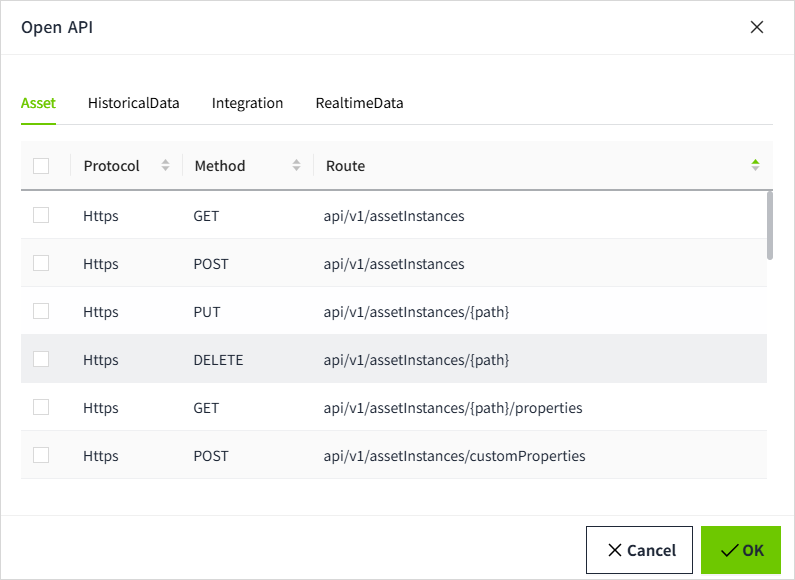

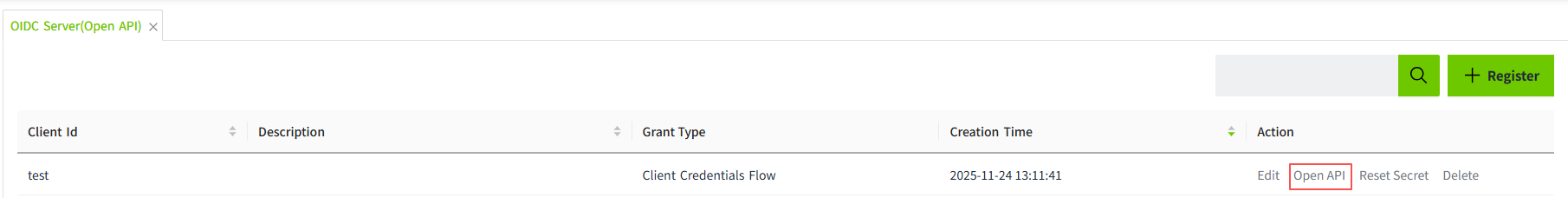

  2. Click the "Open API" link and grant all permissions to the new client id.

    alt text

    alt text

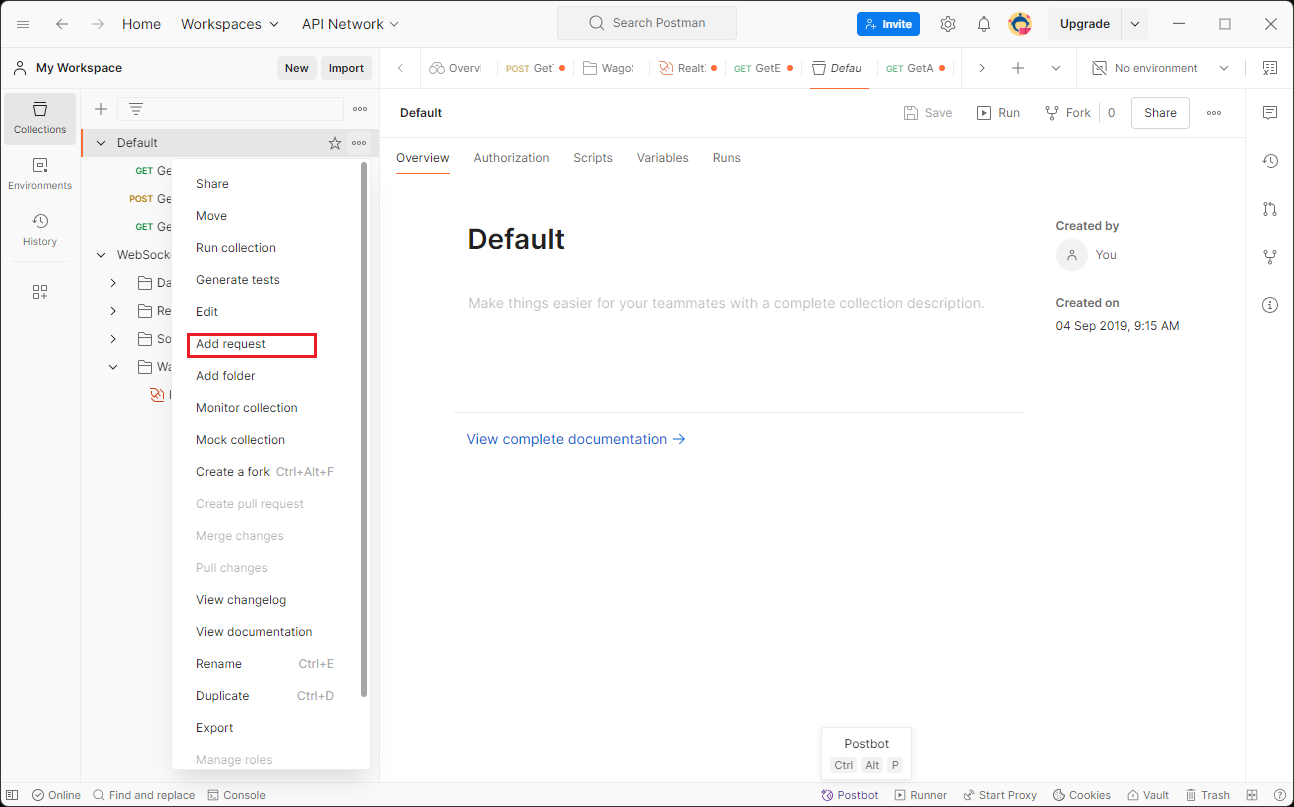

  3. Open the Postman application and create an HTTP request by clicking the menu, as shown in the screenshot below.

    alt text

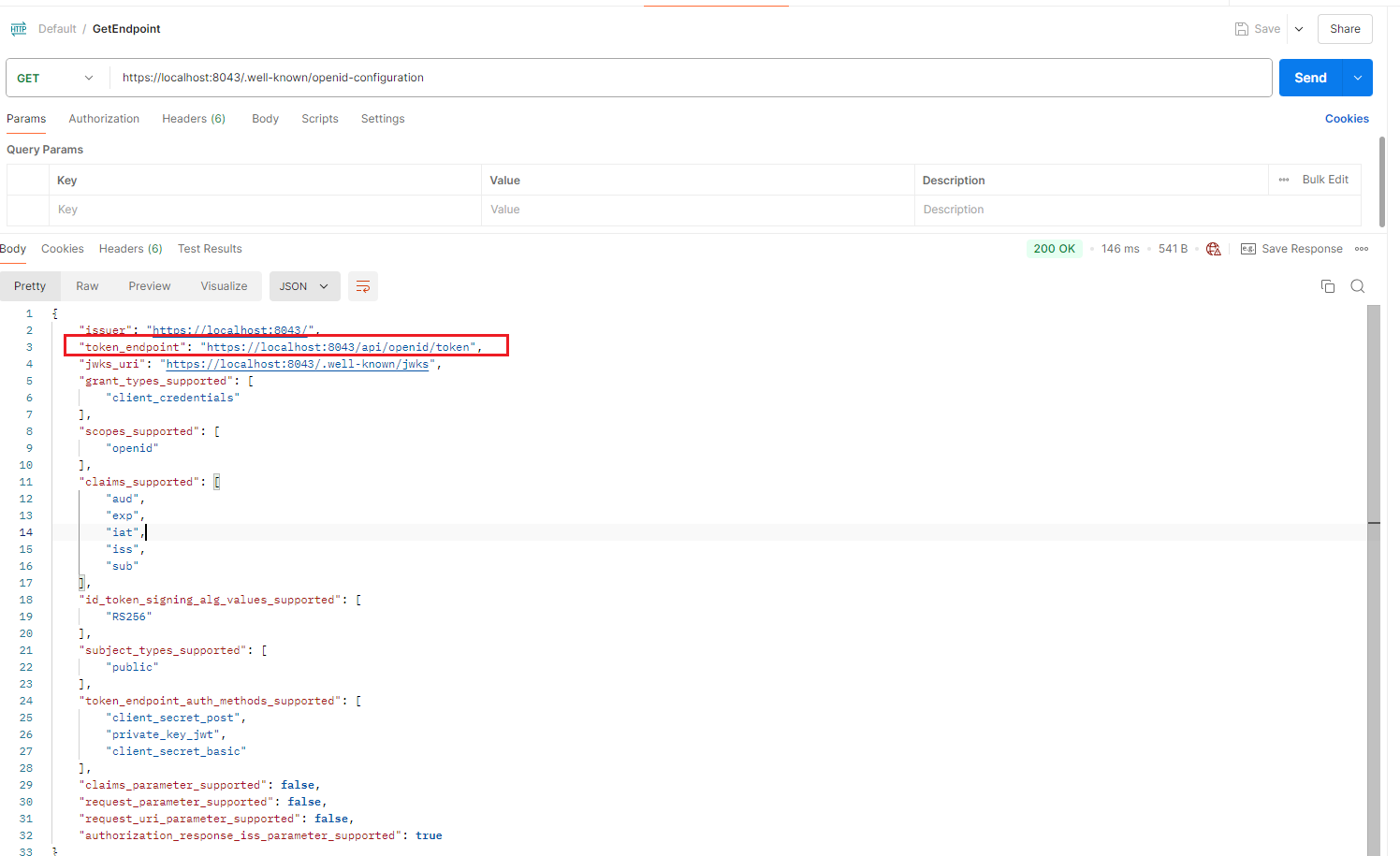

  4. Create a GET request for the URL https://localhost:8043/.well-known/openid-configuration. Send the request by clicking the Send button, and extract the Token URL from the response. Note that the Open API only supports HTTPS protocol. The default port of https is 8043 and it can be configured on node settings page. For the node settings page, refer to chapter "Node Configuration".

    alt text

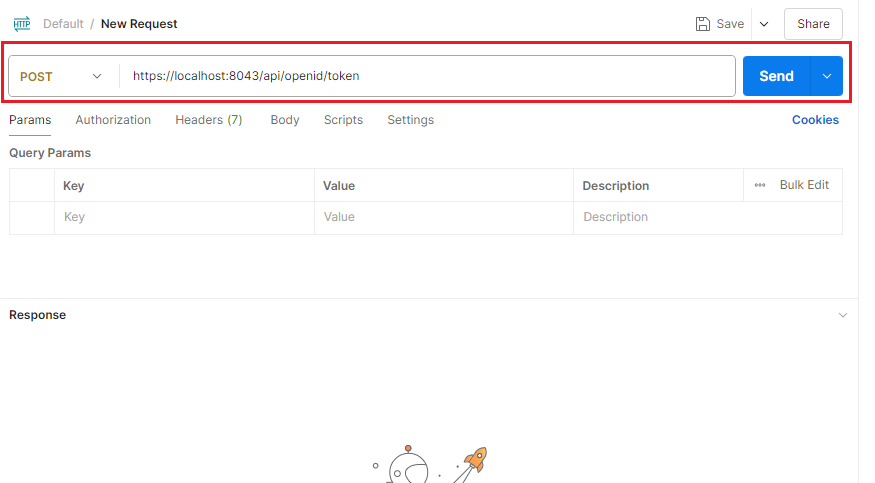

  5. Create a POST request with the token url retrived from the previous step.

    alt text

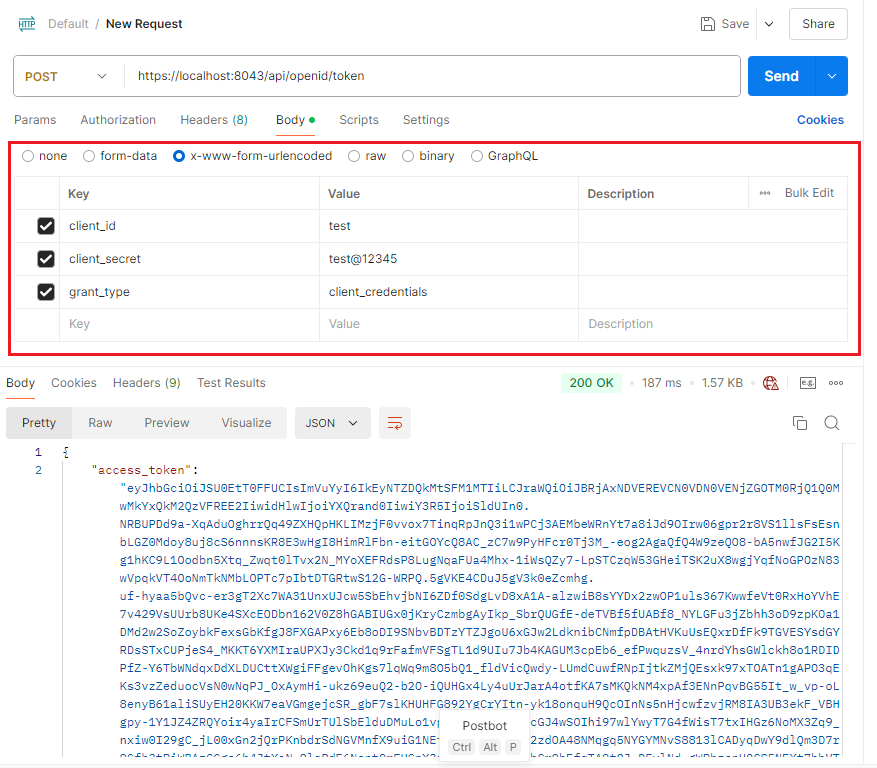

  6. Enter the client ID and client secret registered on API credentials page, as shown in the example below. Set the grant_type to "client_credentials", then click the send button. The access token can be extracted from the HTTP response. Note that the request body format must be x-www-form-urlencoded.

    alt text

Key Description
client_id The client id registered in the API credentials management page
client_secret The client secret registered in the API credentials management page
grant_type The grant type of the open id request. Only the "client_credentials" value is supported
