Typical Architecture Selection Guide

Single Server Architecture

alt text

Required Authorized Modules License Quantity
I/O Tags 1

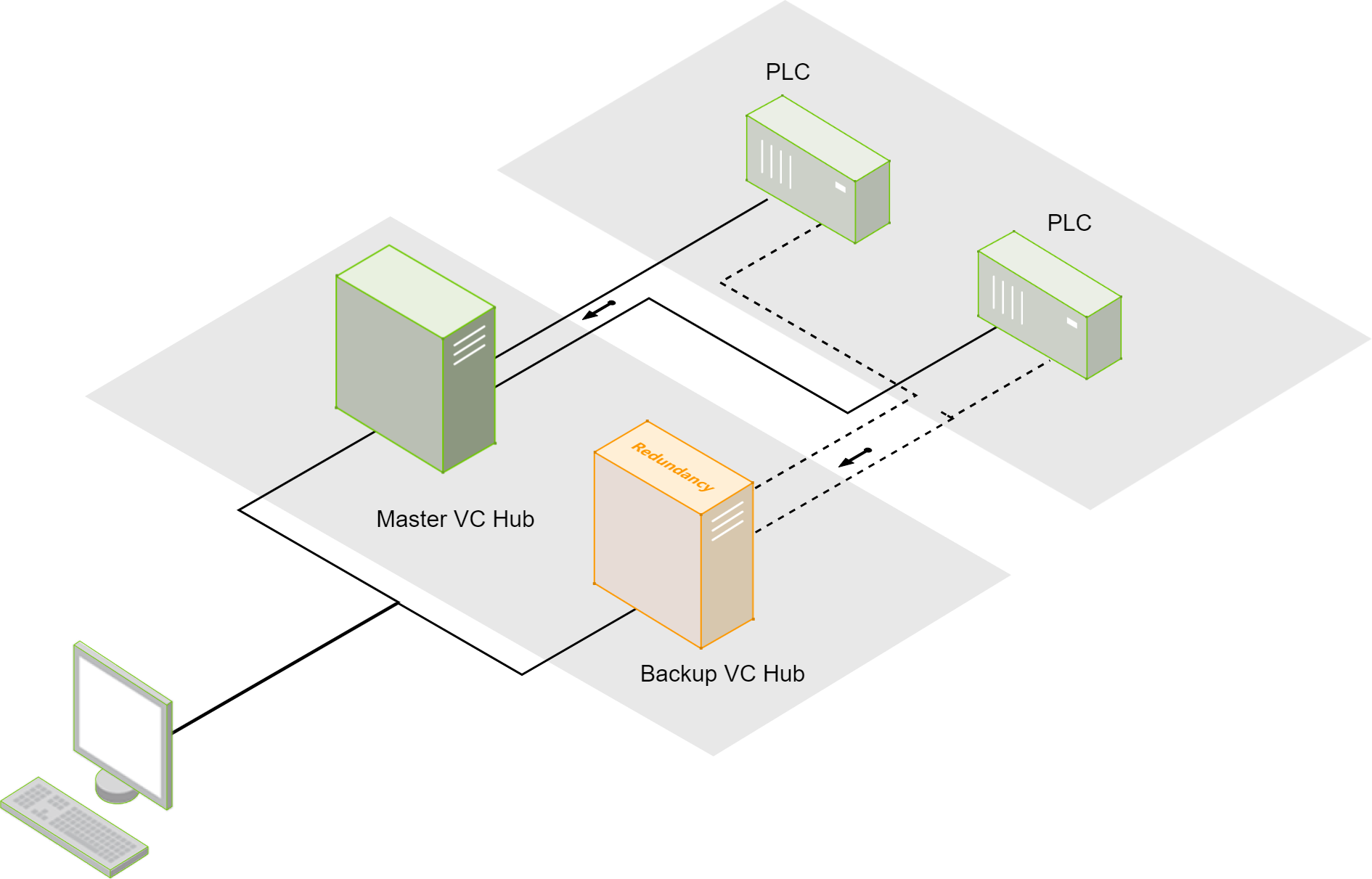

Single Server Redundant Architecture

alt text

Required Authorized Modules License Quantity
I/O Tags 2

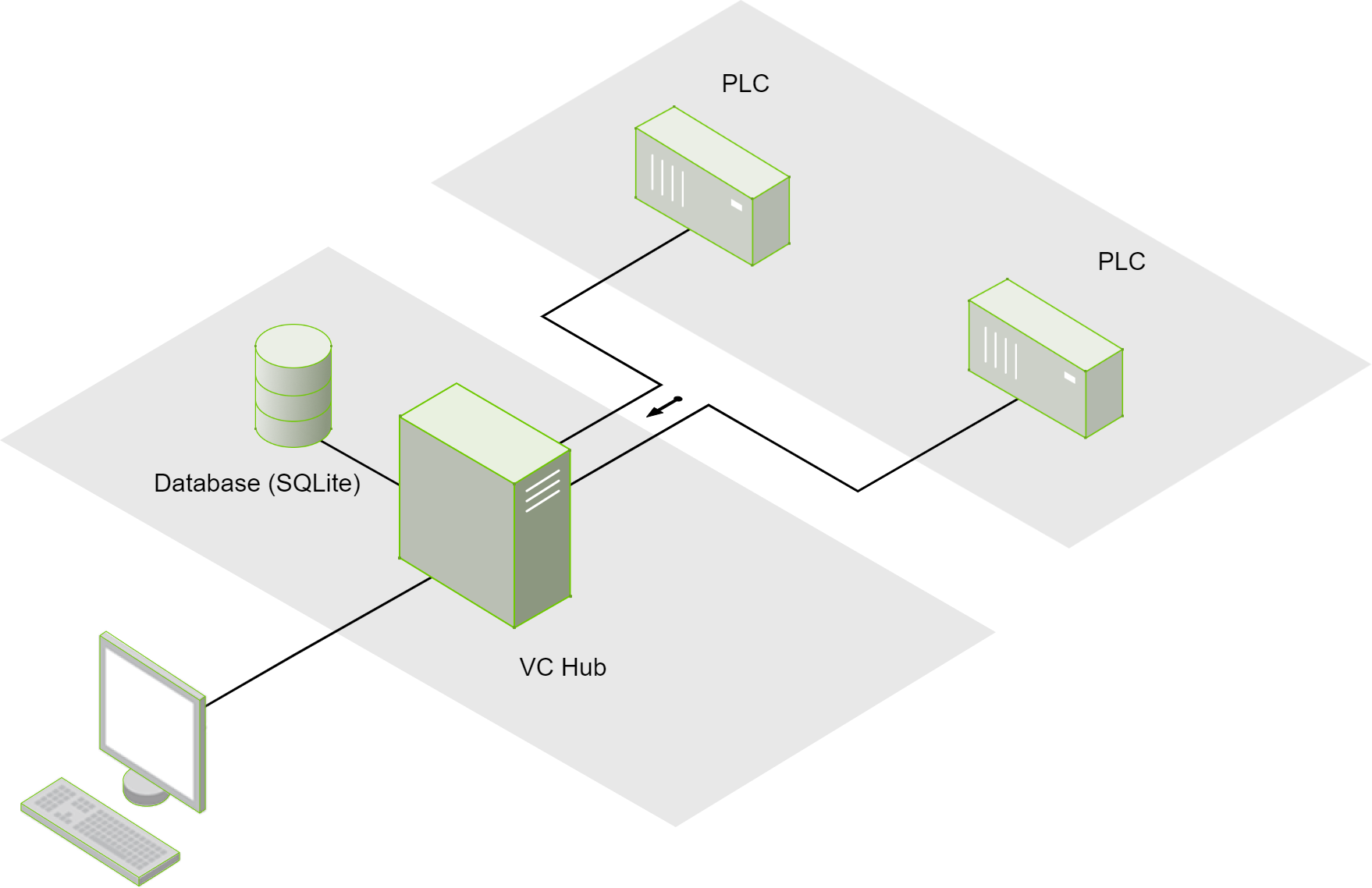

Single Server + Database Architecture

alt text

Required Authorized Modules License Quantity
I/O Tags 1
Historical Data 1

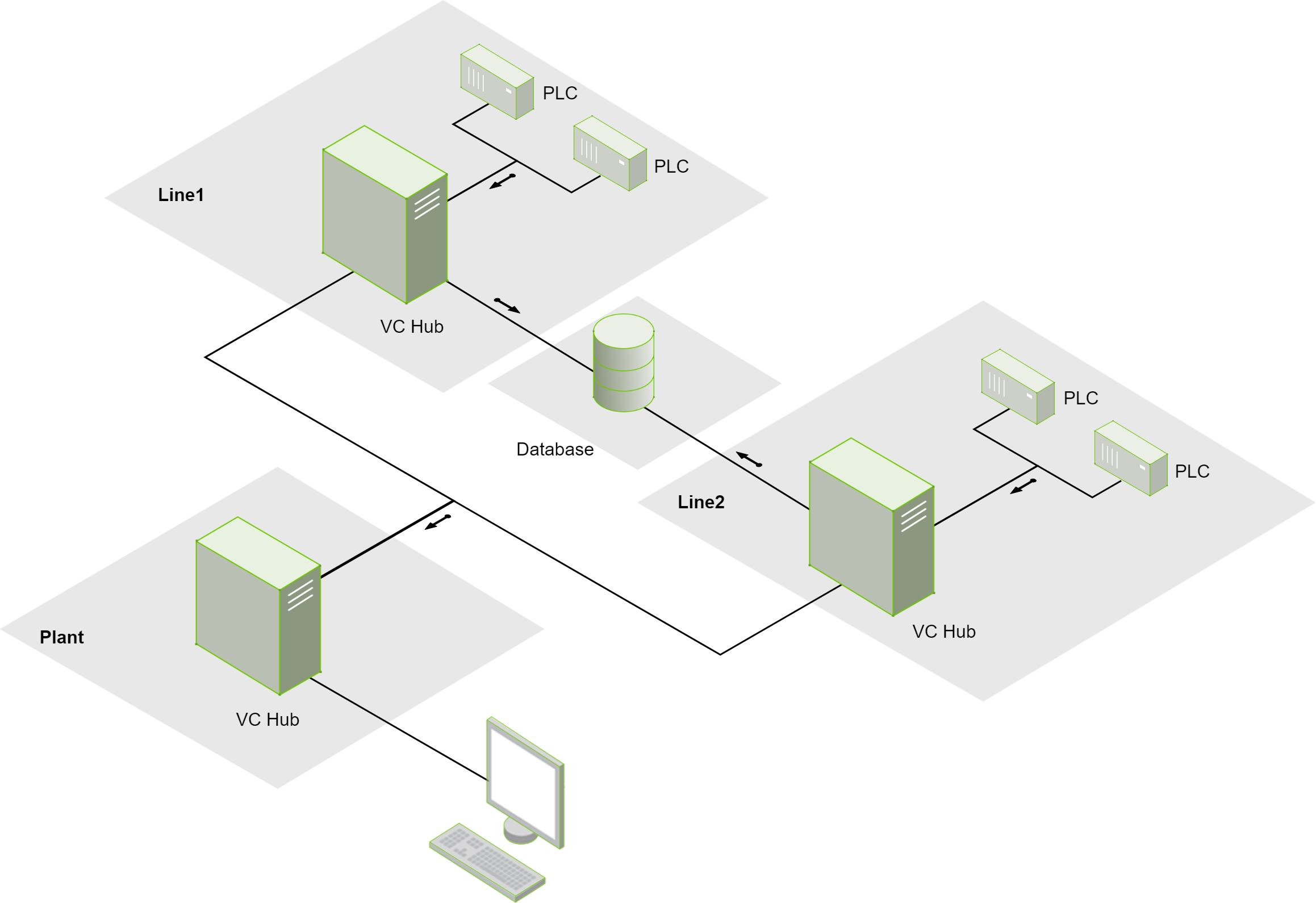

Basic Networking Architecture

alt text

Required Authorized Modules License Quantity
Line 1 - I/O Tags 1
Line 1 - Historical Data 1
Line 2 - I/O Tags 1
Line 2 - Historical Data 1
Plant - I/O Tags 1

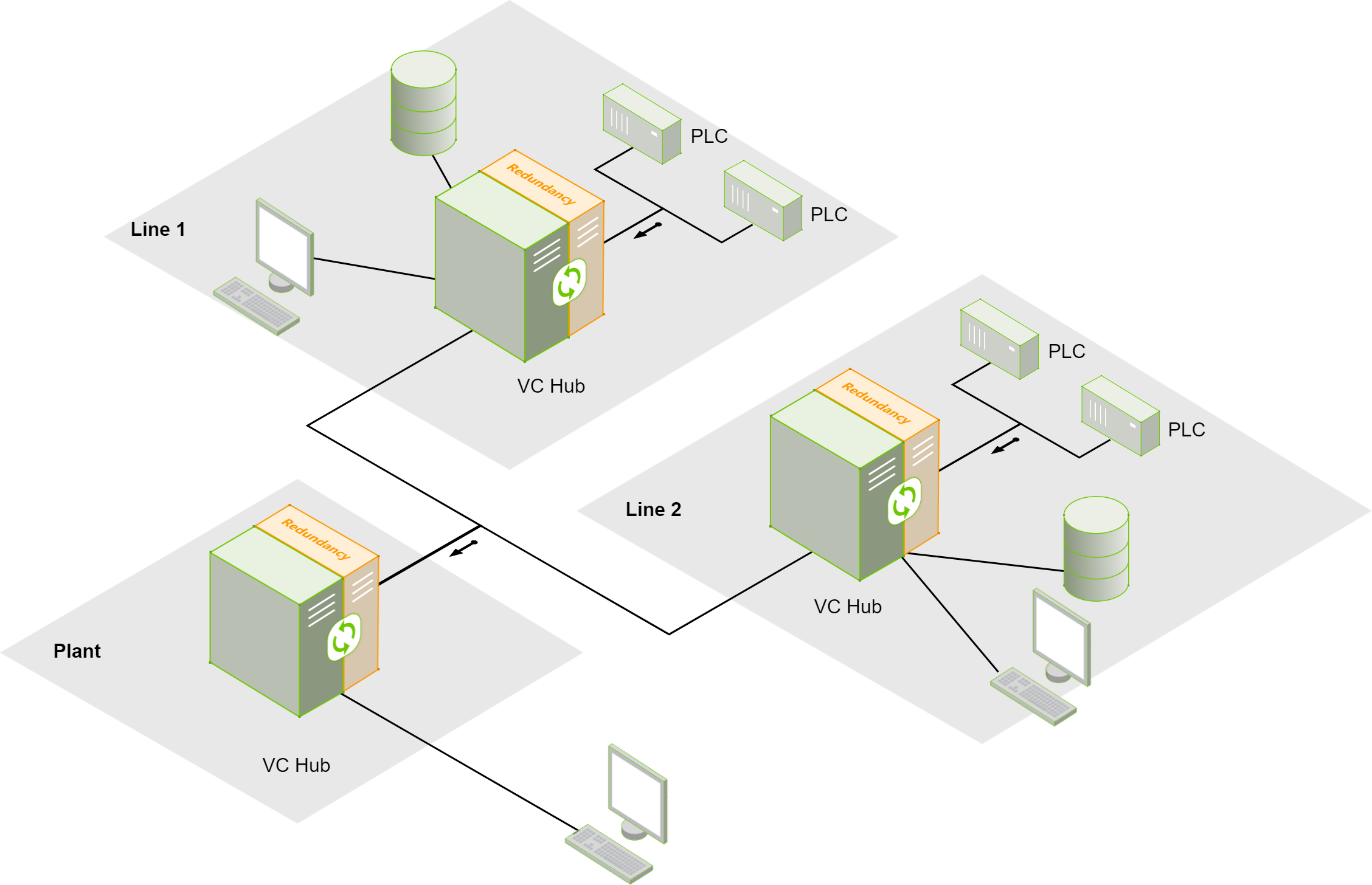

High Availability Networking Architecture

alt text

Required Authorized Modules License Quantity
Line 1 - I/O Tags 2
Line 1 - Historical Data 2
Line 2 - I/O Tags 2
Line 2 - Historical Data 2
Plant - I/O Tags 2

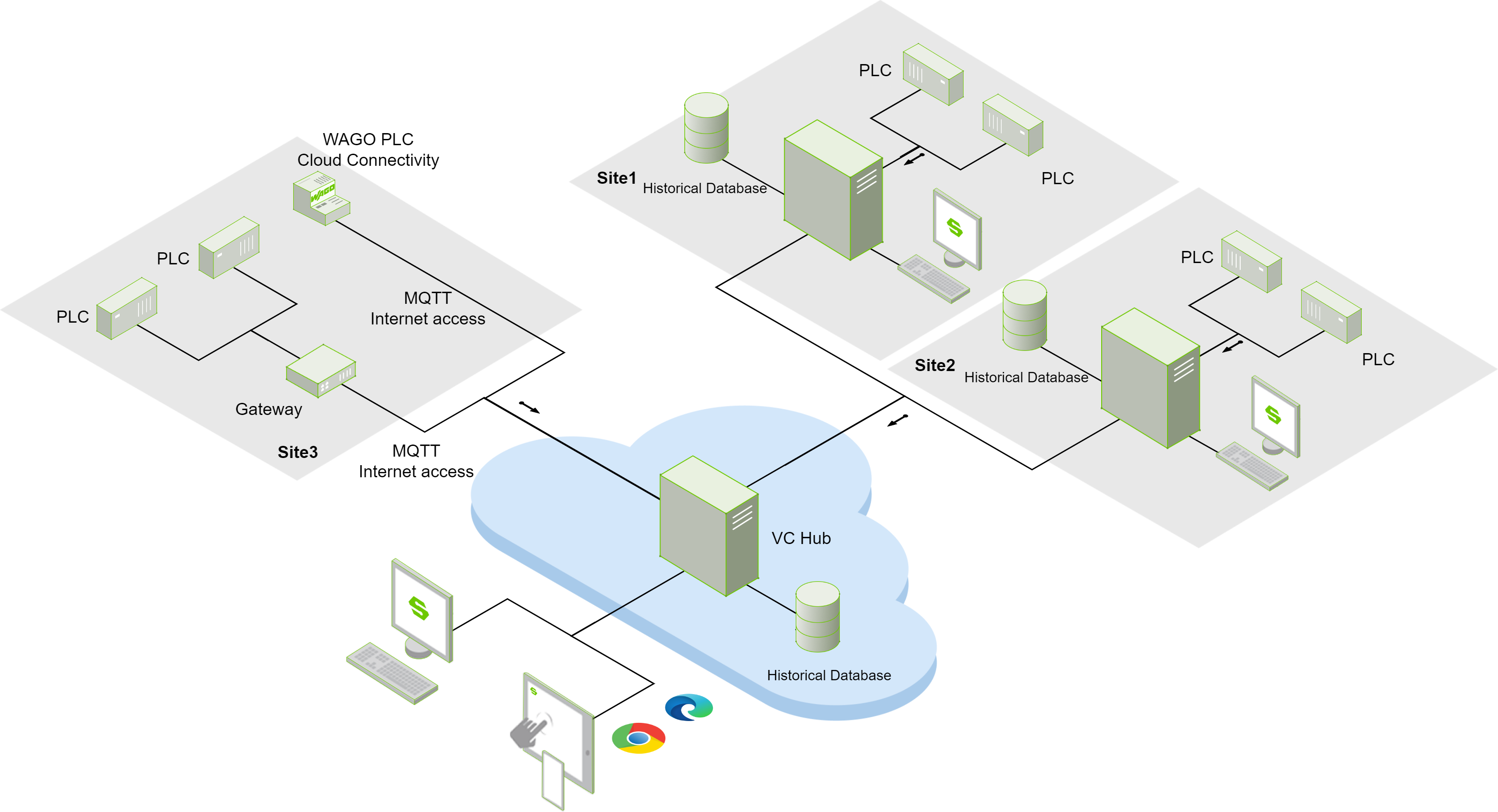

Cloud-Edge Networking Architecture

alt text

Required Authorized Modules License Quantity
Site 1 - I/O Tags 1
Site 1 - Historical Data 1
Site 2 - I/O Tags 1
Site 2 - Historical Data 1
Cloud - I/O Tags 1
Cloud - Historical Data 1
