Event

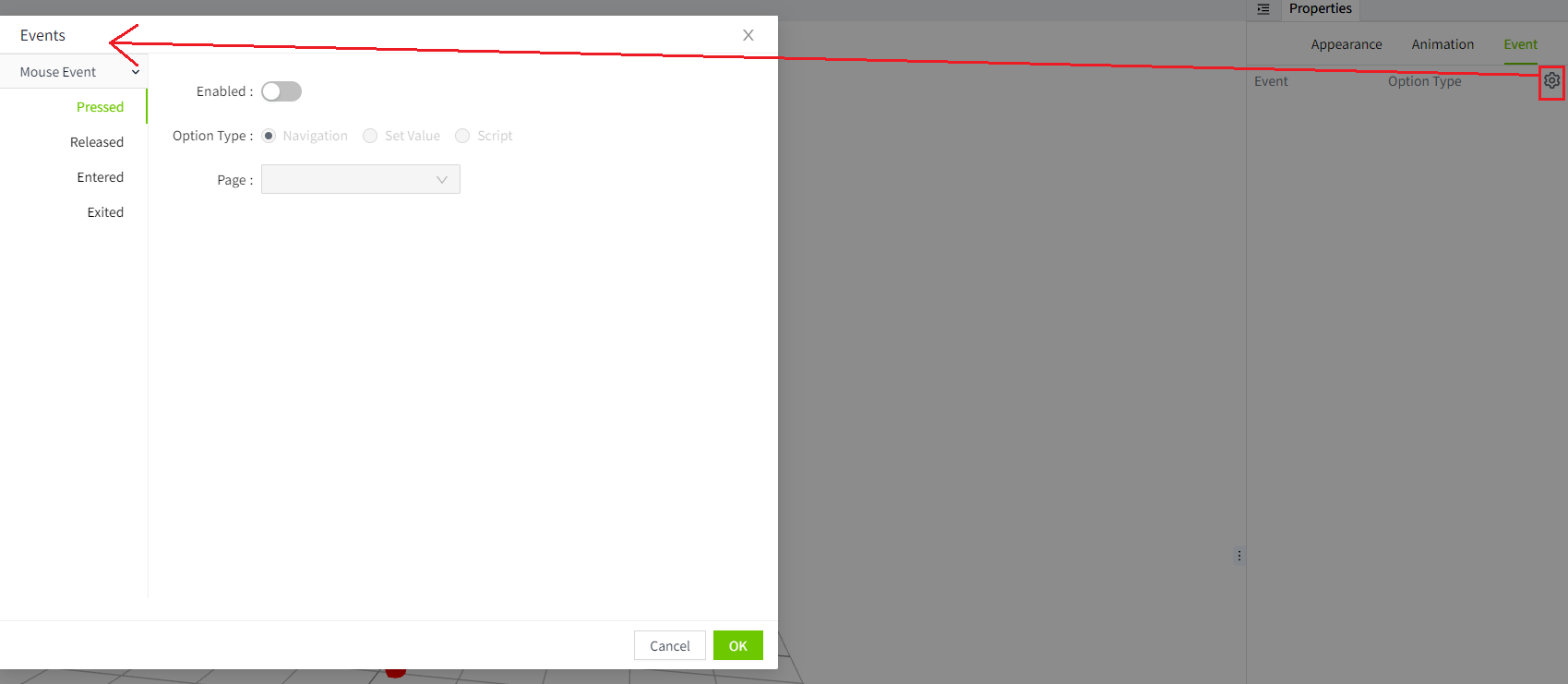

In VC Hub, when a model has event properties, the 'Event' column will be displayed in the right-hand property panel. Clicking the settings button allows for event configuration.

alt text

How to trigger an event

Specific events can be triggered by the following events.

Mouse Event

Mouse events refer to triggering specific events when the user uses the mouse to operate the page or controls. Include:

  • Pressed
  • Released
  • Entered
  • Exited

Event type

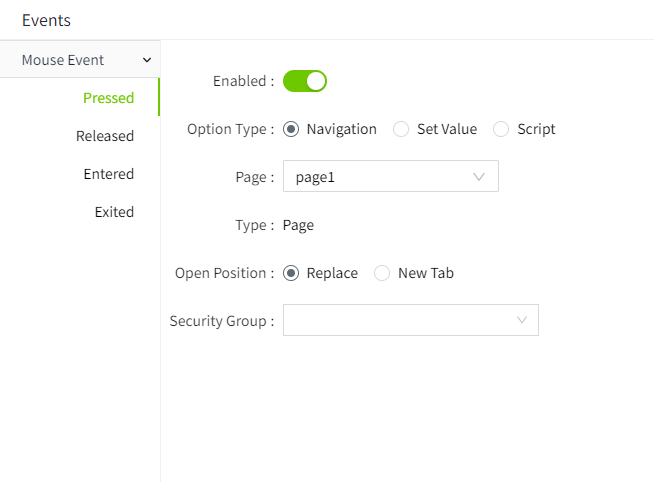

Simply select a page from the page list. When the trigger condition for the event is met, the selected page will open. Different opening positions can be set for pages of different types.

alt text

Example

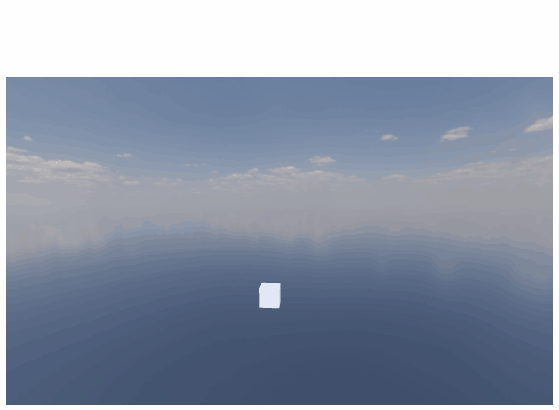

Add a cube model to the page in the scene editor. When the mouse is clicked on the model, a pop-up window will open to introduce the detailed information of the model.

3d_Event3

Set Value

Assign a new value to the tag.

alt text

Example

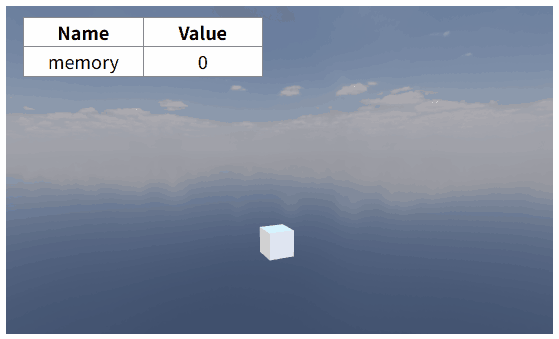

When the mouse is clicked and the model is lifted, the value of tag 1 will be modified to 10.

3d_Event5

Script

Allows you to write custom scripts for more flexible configuration.

alt text Example

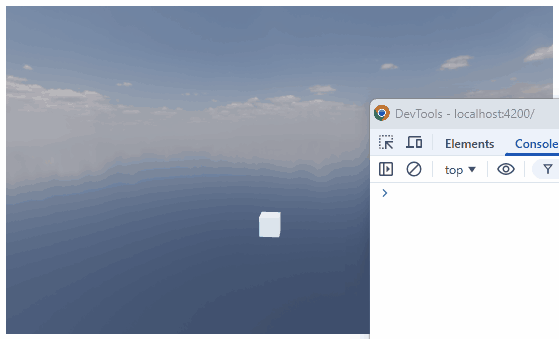

When the mouse enters the model range, a script will be executed. 3d_Event7

Security Group

To set the required security group, click the Security Group drop-down button and select one or more roles in the expanded list. After selecting characters, they will be displayed in the selection box.

alt text

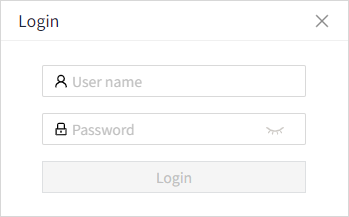

Once a security group is set for an action, when the action is triggered by running the page, a login window will pop up, requiring the user to authenticate. Only users who belong to the role of the set security group have permission to perform this event.

alt text

Note: The security group is only effective when authentication is performed using a Local-type Identity Provider.
