remove¶
Description: Delete model
Query the model and delete it:
const view = await System.UI.findControl('3DViewer1')// Obtain a 3D viewer control named "3DViewer1" in the page
const scene = await view.getScene();
const chariot = await scene.query({
name: 'chariot',
})// Fuzzy query for models with chariot names, returning an array
chariot.forEach((ele) =>scene.remove(ele))// Traverse the array and perform a delete all operation
Example:

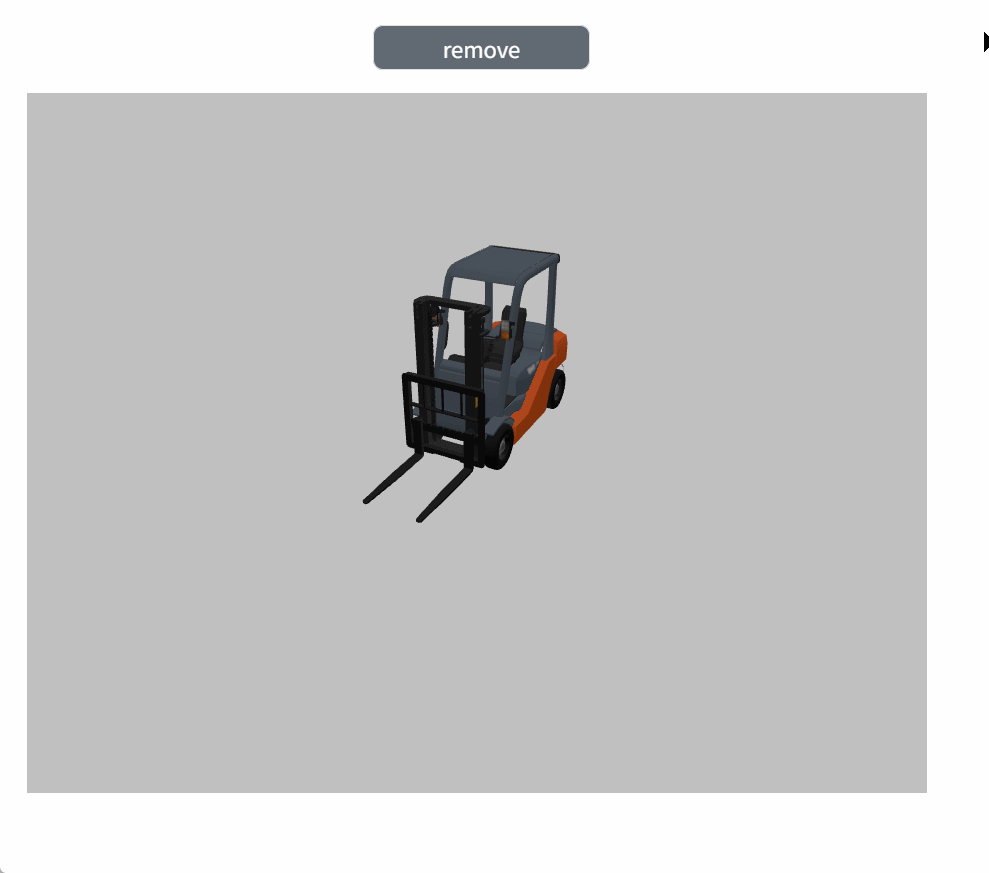

Write the above code on the button, click on the button, and delete all models with names containing charts

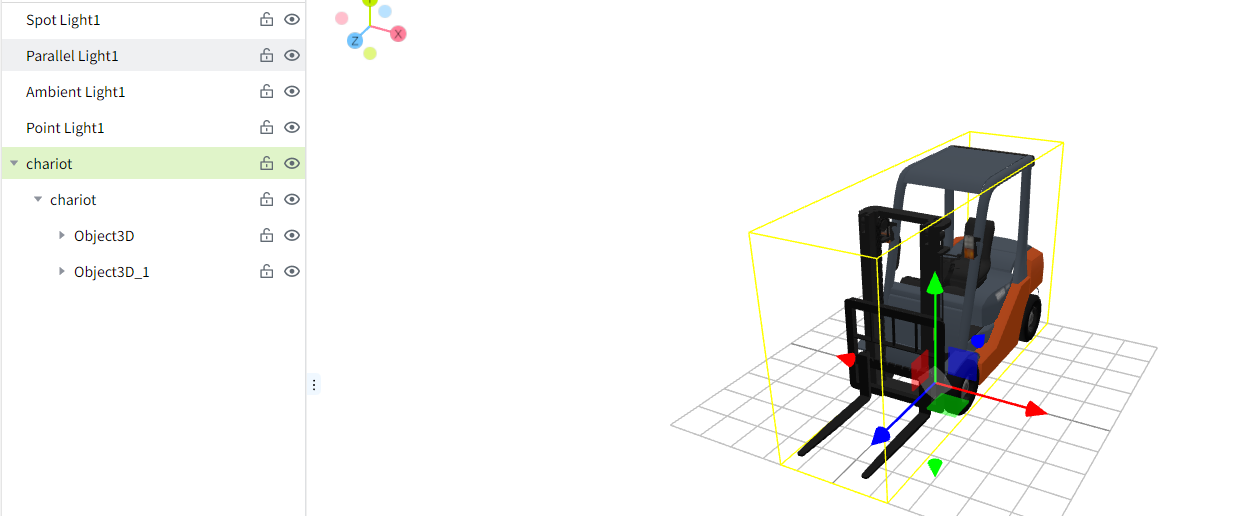

3D scene model:
