queryTextLabel¶
Description: Query all text annotations that meet the conditions in the scene
Query text annotations:
const view = await System.UI.findControl('3DViewer1')// Obtain a 3D viewer control named "3DViewer1" in the page
const scene = await view.getScene();
const mash = await scene.queryTextLabel({
//Id: "3b013f32-d6b0-484e-835c-e63e75d30ecb",//To query the unique uuid of the model
name: 'text',//Fuzzy query for text annotations with names containing text
//User defined data content for userData
})
console.log(mash)//Output all queried results

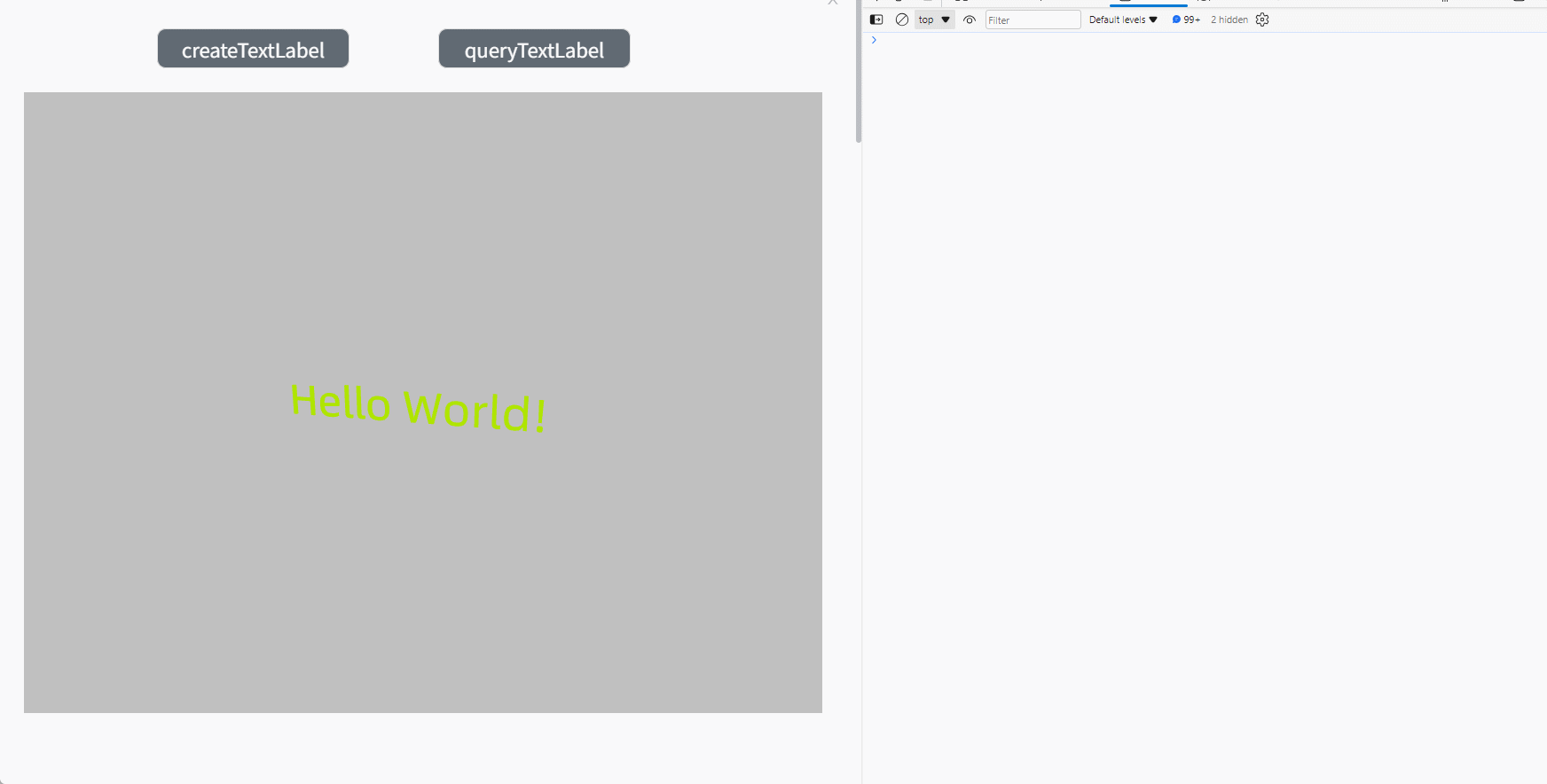

Example:
Write the above code on the button, click the button, and you can search for text annotations with names containing text in the scene

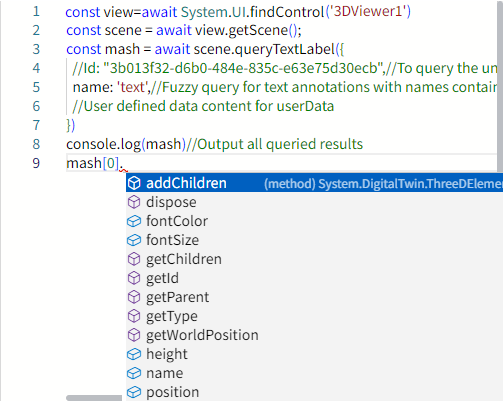

The queried model can use all its methods and properties:
