findTextLabel¶
Description: Query the first text annotation that meets the criteria in the scene
Query text annotations:
const view = await System.UI.findControl('3DViewer1')// Obtain a 3D viewer control named "3DViewer1" in the page
const scene = await view.getScene();
const mash = await scene.findTextLabel({
//Id: "3b013f32-d6b0-484e-835c-e63e75d30ecb",//To query the unique uuid of the model
name: 'text',//Fuzzy query for text annotations with names containing text
//User defined data content for userData
})
console.log(mash)//Output all queried results
Example:
Write the above code on the button, click the button, and you can query the first text annotation in the scene where the name contains text

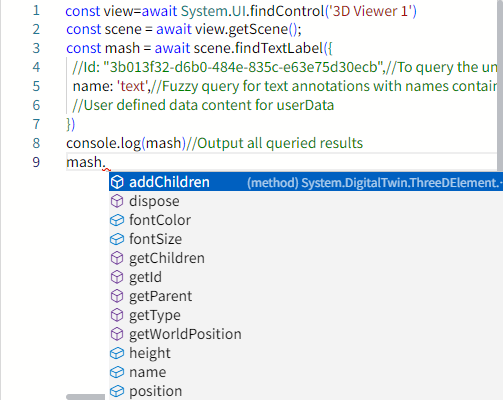

The queried model can use all its methods and properties:
