lookAt¶
Description: The camera focuses on objects within the scene.
Usage Method 1:¶
const view = await System.UI.findControl('3DViewer1')// Obtain a 3D viewer control named "3DViewer1" in the page
const scene = await view.getScene();
const mesh = await scene.findMesh({ name: 'Forklift' });
await scene.camera.lookAt({
object: mesh,
distance: 1, // The distance between the camera and the model.
duration: 500 // Animation duration.
});

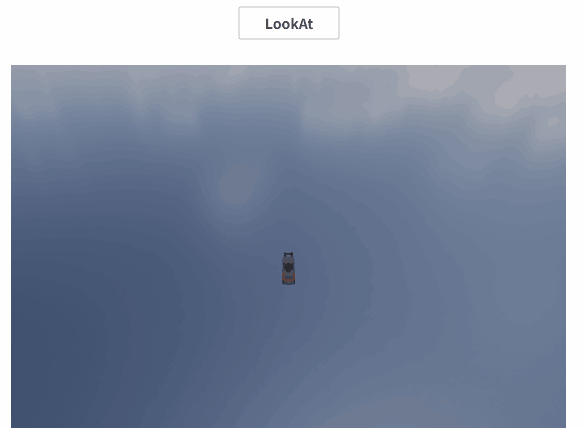

Example:
Write the above code on a button so that when the button is clicked, the camera focuses on the model from any position in the scene.
Usage Method 2:¶
const view = await System.UI.findControl('3DViewer1')// Obtain a 3D viewer control named "3DViewer1" in the page
const scene = await view.getScene();
const mesh = await scene.findMesh({ name: 'Forklift' });
await scene.camera.lookAt({
object: mesh,
viewOffset: { x: 0, y: 30, z: 0 }, // Camera position after the animation ends.
duration: 500 // Animation duration.
});

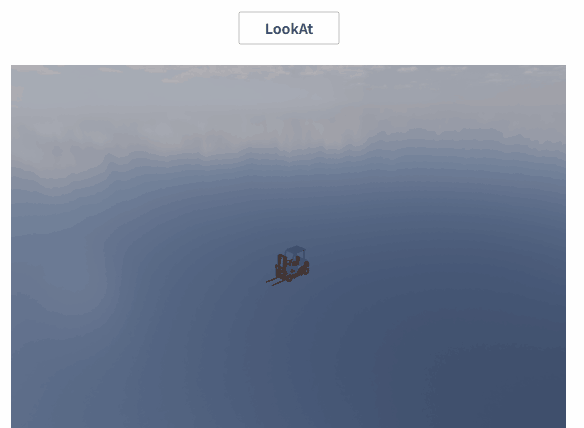

Example:
Write the above code on a button so that when the button is clicked, the camera focuses on the model and remains in a fixed position.
