Page Function¶

What is a page function?¶

Page functions are predefined functions that can be called in multiple places within a project. When you execute an page function, you can pass parameters to it to get the execution result, which helps avoid writing the same logic repeatedly.

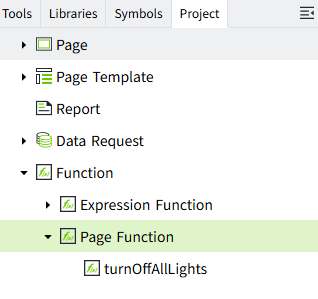

Page functions are located under Project > Function in the editor.

Create Page Function¶

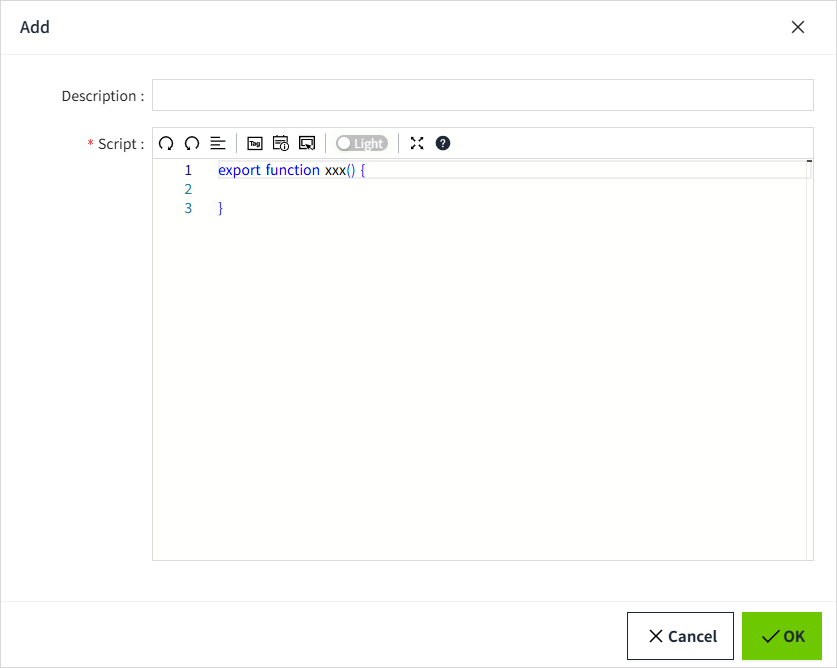

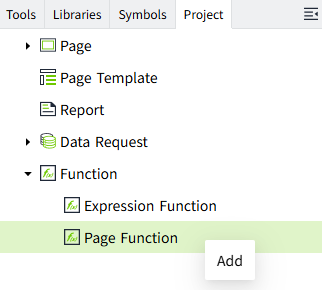

To create a page function, right-click on the "Page Function" node under "Function" and select "Add".

Note：In use, Page function is referred to by name, so all references to the page function need to be updated when renaming.

Property

Where can page functions be used?¶

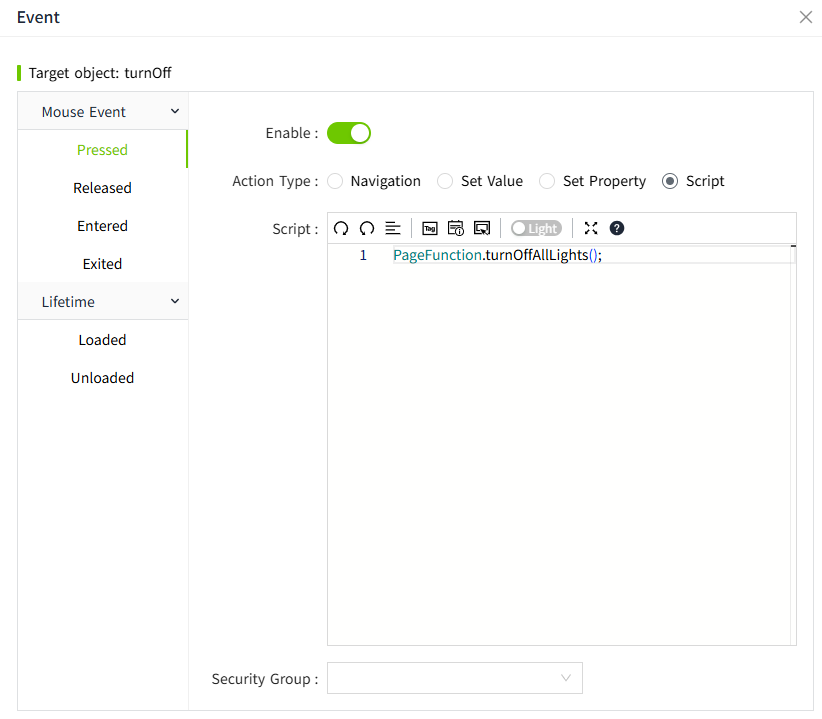

In any event configuration interface that supports Script, you can access page functions through the PageFunction namespace.

Example: Batch control pump group start/stop¶

1. Create a page function named controlPumpGroup with the following script

   // @param {string} command - Start/Stop command (Start or Stop)
   // @param {array} pumpTags - Array of pump control tags
   // @returns {boolean} Whether the operation was successful
   export async function controlPumpGroup(command: 'Start' | 'Stop', pumpTags: Array<string>) {
       let successCount = 0;

       for (const tag of pumpTags) {
           try {
               await System.Tag.writeValue(tag, command == 'Start');
               successCount++;
           } catch (error) {
               console.error(`Failed to control pump ${tag}:`, error);
           }
       }
       return successCount === pumpTags.length;
   }


2. Call this page function in a button's mouse down event script.

   const pumpTags = [
       '@Default:Pump1_Control',
       '@Default:Pump2_Control',
       '@Default:Pump3_Control'
   ];

   const result = await PageFunction.controlPumpGroup("Start", pumpTags);

   if (result) {
       console.log("All pumps started successfully");
   } else {
       console.log("Some pumps failed to start");
   }
