Tag List¶
The tag list is used to display the names and current values of multiple tags.
Properties
| Name | Description |
|---|---|
| Name | The name of this control. |
| X | The distance between the left side of the control and the left side of the canvas. |
| Y | The distance between the top of the control and the top of the canvas. |
| W | The width of the control. |
| H | The height of the control. |
| Data | Click the Bind button to bind data to the control. Double-click the tag in the Select Tag window to bind it. After binding a tag, if the data type of the bound tag is numeric, you can click the Set button to set the number of decimal places displayed by the tag. |
| Refresh Frequency | Set the update frequency of this control's data. The frequency can only be set when enabled. |
| Fill | Set the background color of the content display area. - Background: Set background color of the control. - Odd Rows: Set background color of the add rows. - Even Rows: Set background color of the even rows. |
| Border | Set the border color and border thickness. |
| Font | Set font type, font size, bold, italic, and font color. |
Event
Allows you to perform specific events based on certain conditions. See the full description of each event on the 2D Visualization-> Event page.
Example
Check the production line capacity.
- Insert a "Tag List" control on the page.
- Set the control's properties.
| Property | Value |
|---|---|
| Background | f48256 |
| Odd Rows | 95c78c |
| Even Rows | 84d0e0 |
| Border | 008080 |
| Font | Microsoft Yahei, 16, ffffff |

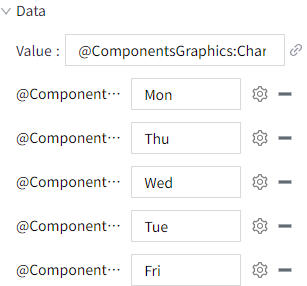

| Data | Click the data binding button and double-click the binding tag.  |
| Refresh Frequency | Turn on, set frequency to 1 second. |

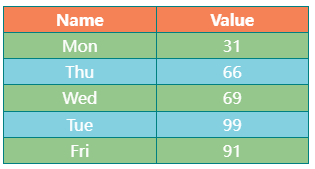

3.Check the display effect.
