Number Input¶

The Number Input is used to display numbers and also to send down numeric values.

Properties

Name	Description
Name	The name of this control.
Y	The distance from the top of the control to the top of the canvas.
W	Width of the control.
H	The height of the control.
Value	The value displayed in the Input Number .
Decimals	Used to set the number of decimal places for the value displayed and entered in the Input Number , and the lack of which is automatically complemented by 0.
Boundary Value	Sets whether or not bounds are enabled. When enabled, the control can only enter values between the maximum and minimum values. - Min: Sets the minimum value allowed to be entered on the control - Max: Sets the maximum value allowed to be entered on the control
Out-of-bounds Prompts	Sets whether to enable out-of-bounds prompts. When enabled, you can set the content of the out-of-bounds hint.  Example: Note :The out-of-bounds hint must be enabled for the boundary value to take effect.
Fill	The background color of the Input Number.
Border Color	The border color of the Input Number .
Border Thickness	The border thickness of the Input Number .
Shadow	Sets the shadow effect of the control. You can set the outer shadow and inner shadow. Outer - Enable: Whether to enable the shadow effect - Color: Used to set the shadow color - X: Controls how far the shadow is shifted horizontally. X = 10 → shadow moves 10px to the right X = -5 → shadow moves 5px to the left - Y: Controls how far the shadow is shifted vertically. Y = 8 → shadow moves 8px downward Y = -3 → shadow moves 3px upward - Blur: Controls how soft or sharp the edges of the shadow appear. Higher values make the shadow more blurry and spread out. Inner - Enable: Whether to enable the shadow effect - Color: Used to set the shadow color - X: Controls how far the shadow is shifted horizontally. X = 10 → shadow moves 10px to the right X = -5 → shadow moves 5px to the left - Y: Controls how far the shadow is shifted vertically. Y = 8 → shadow moves 8px downward Y = -3 → shadow moves 3px upward - Blur: Controls how soft or sharp the edges of the shadow appear. Higher values make the shadow more blurry and spread out. - Spread: Controls how much the shadow expands or contracts from the shape.
Font	Sets the font of the control. Includes font , font size, font color, bold, italic, and horizontal alignment.

Event

Allows you to perform a specific event based on certain conditions. See the 2D Visualization-> Event page for a complete description of the various events.

Example

Modify the factory workshop temperature via a input number control.

1. Add a input number control to the page.
2. Set the properties of the control.

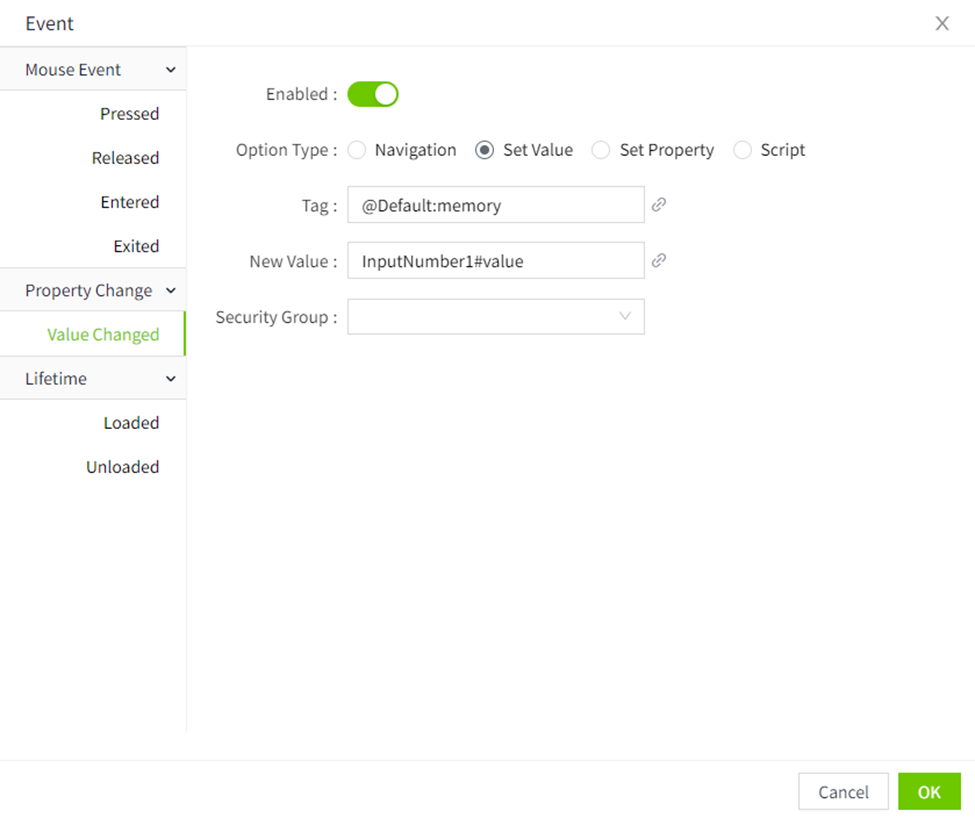

3.Set the "Value Changed" -> "Set Value " in the event property of the input number control to send a value to a tag to change the factory floor temperature.
