Ruler

Ruler is used to measure and mark lengths, often used with text label controls.

alt text

Properties

Name Description
Name The name of this control.
X The distance between the left side of the control and the left side of the canvas.
Y The distance between the top of the control and the top of the canvas.
W The width of the control.
H The height of the control.
alt text The angle of the control.
Fill The background color of the control.
Tick Sets the appearance style of the tick.
- Axis: Set the axis color. The red area in the figure below is the main axis.
alt text
- Major Tick: Set the major tick color, quantity and length. The red area in the figure below is the major tick.
alt text
- Minor Tick: Set the minor tick color, quantity and length. The red area in the figure below is the minor tick.
alt text
Tick Value Set the measuring range of the ruler.
- Show: Whether or not to display the value.
- Reverse: Displays the maximum and minimum values of the ruler values in reverse.
Before reverse:
alt text
After reverse:
alt text
- Min: Minimum value of the ruler
- Max: Maximum value of the ruler
- Type: Contains value and percentage to set the numeric type
- Decimals: Sets the number of decimal places for the ruler value.
- Font: Sets the font type, font size, bold, italic, and font color for the ruler value.

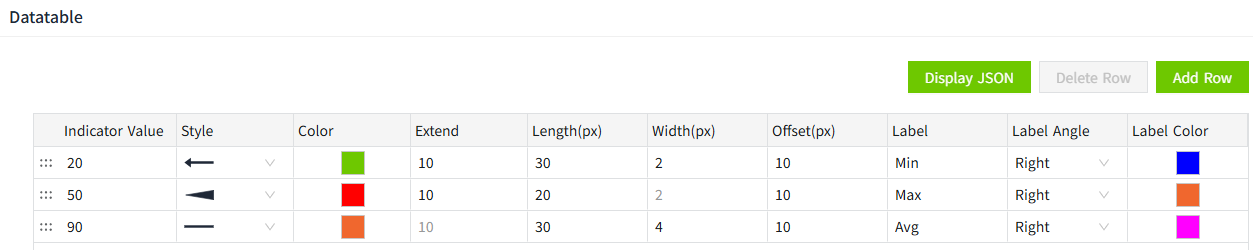

Indicator Set the style for each indicator on the ruler. Available styles include Arrow, Line, and Wedge. Click the Settings button to open a dialog where you can configure the indicators and their styles. alt text
- Indicator Value: Value corresponding to the indicator
- Style: Select the style for the indicator , choosing from arrow, line, or wedge
- Color: Set the color of the indicator
- Extend: When "Line" is selected, the Extend field is disabled.
alt text
- Length: The overall length of the indicator
- Width:
When Wedge is selected, the Width field is disabled.
When Line or Arrow is selected, the Width value represents the width of the line segment.
- Offset: Setting the distance between the indicator and the axis
- Label: Set a text label for the indicator
- Label Angle: Set the text’s display orientation
- Label Color: Set the font color of the text

Event

Allows you to perform specific events based on certain conditions. See the full description of each event on the 2D Visualization-> Event page.

Example

Add 3 indicators to the ruler to indicate the max, min and avg values.

  1. Insert a ruler control on the page

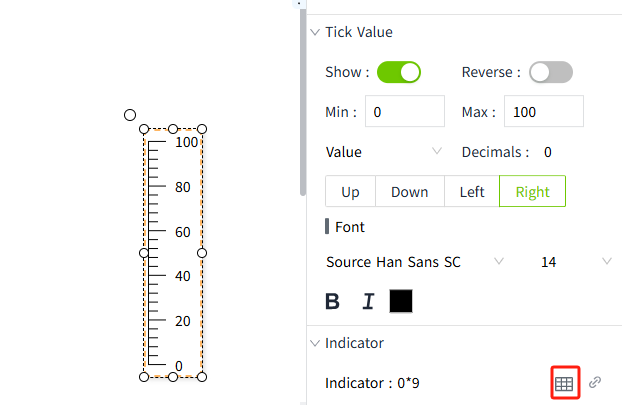

  2. Click on the control and in the Appearance property of the control click on the setting button of the indicator

    alt text

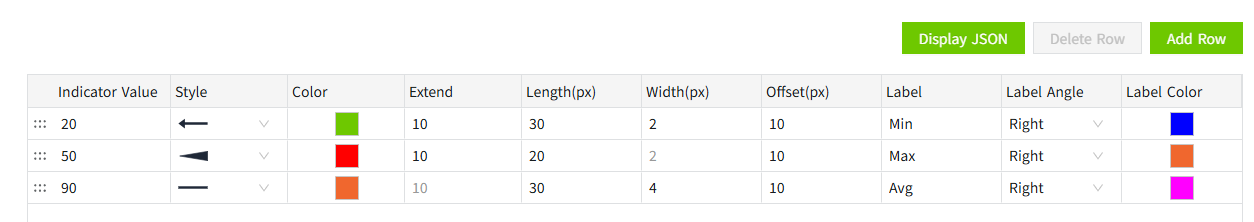

  3. Make the following settings in the datatable popup window

    alt text

  4. After saving the popup, the ruler is displayed as follow：

    alt text
